  • ISCAR E90AC D1.25-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.250 Diameter Weldon 1.250 5.120 OAL 3 Flute

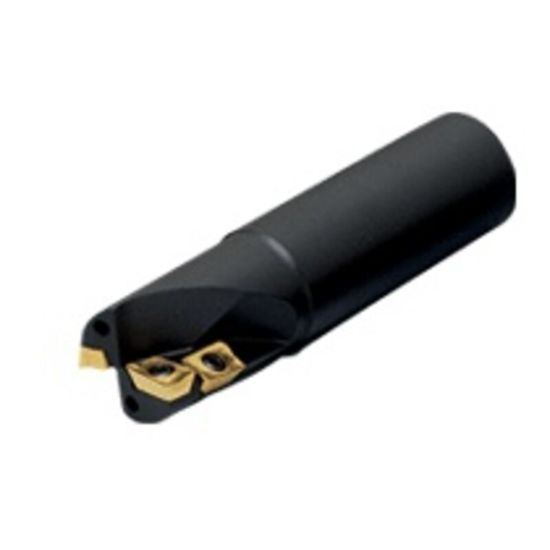

Picture of ISCAR E90AC D1.25-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.250 Diameter Weldon 1.250 5.120 OAL 3 Flute

ISCAR E90AC D1.25-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.250 Diameter Weldon 1.250 5.120 OAL 3 Flute

ANSI: E90AC D1.25-1.0W1.25

ISO: E90AC D1.25-1.0W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100305
Delivery date: 3-5 days
$460.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Side Milling, Ramp Milling, Slot Milling, Plunge Milling, Shoulder Milling, Drilling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cut Dia Min 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.2600
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 15
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.1200 130.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Insert Style AD
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7002008
