  • ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

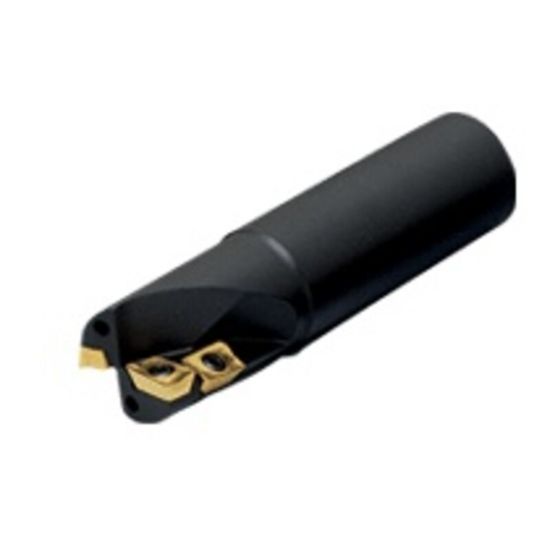

Picture of ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

ISCAR E90AC D1.00-.40W1.0 Milling Cutter 90.0°, Drill Mill 1.000 Diameter Weldon 1.000 4.020 OAL 2 Flute

ANSI: E90AC D1.00-.40W1.0

ISO: E90AC D1.00-.40W1.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100401
Delivery date: 3-5 days
$377.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Shoulder Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling, Drilling, Plunge Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.7500
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 15
Cutter Dia 1.0000 25.40MM
Overall Len 4.0200 102.11MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 7002441
