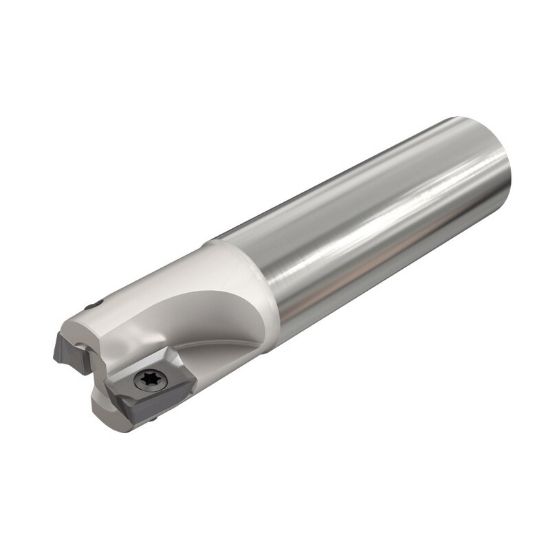

Picture of ISCAR E90A D2.00-W1.00 Milling Cutter 90.0° 2.000 Diameter Weldon 1.000 4.000 OAL 7 Flute

ISCAR E90A D2.00-W1.00 Milling Cutter 90.0° 2.000 Diameter Weldon 1.000 4.000 OAL 7 Flute

ANSI: E90A D2.00-W1.00

ISO: E90A D2.00-W1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110386
Delivery date: 3-5 days
$639.36

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Application Face Milling, Slot Milling, Side Milling
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.3900
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 10
Cut Dia Min 2.0000 50.80MM
Tool Material Steel
Flutes/Inserts 7
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Max Ramp Angle 1.40°
Coolant Thru No
Insert Style AP
Fasteners & Connectors
Insert Screw 7000836
