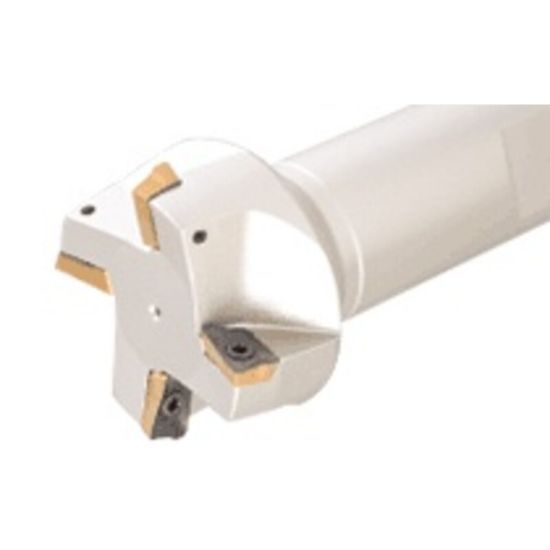

Picture of ISCAR E75A D1.25-W .75 Milling Cutter 75.0° 1.250 Diameter Weldon 0.750 3.750 OAL 3 Flute

ISCAR E75A D1.25-W .75 Milling Cutter 75.0° 1.250 Diameter Weldon 0.750 3.750 OAL 3 Flute

ANSI: E75A D1.25-W .75

ISO: E75A D1.25-W .75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110344
Delivery date: 3-5 days
$493.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.1500
Cut Dia Max 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 3.7500 95.25MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style AP
Coolant Thru No
Insert Shape/Cutter Pocket Shape Parallelogram
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002441
