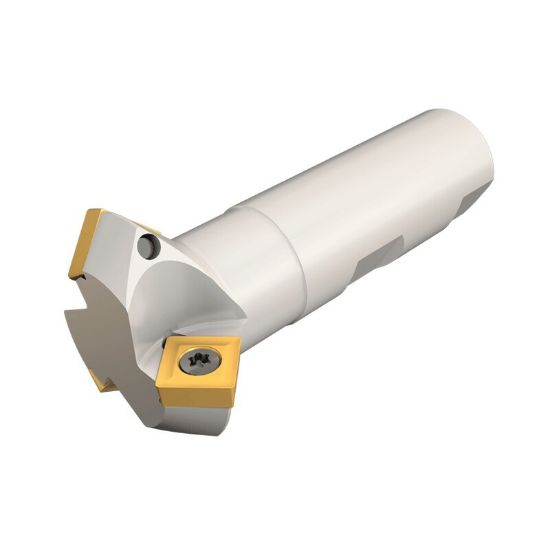

ISCAR E45 D.62-W.75 Milling Cutter 45.0° 0.625 Diameter Weldon 0.750 3.540 OAL 2 Flute

ANSI: E45 D.62-W.75

ISO: E45 D.62-W.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110004
Delivery date: 3-5 days
$244.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Chamfering
Shipping State Texas
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.6250 15.88MM - 5/8
Cut Dia Max 1.4100 35.81MM
Depth Of Cut Max 0.3100
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Weldon
Insert Size Ic 16 "32"
Overall Len 3.5400 89.92MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style TP
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000213
