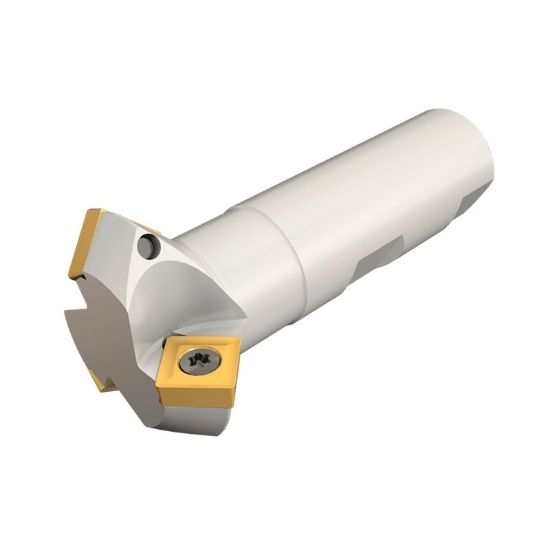

Picture of ISCAR E45 D1.20-W1.00 Milling Cutter 45.0° 1.200 Diameter Weldon 1.000 3.750 OAL 3 Flute

ISCAR E45 D1.20-W1.00 Milling Cutter 45.0° 1.200 Diameter Weldon 1.000 3.750 OAL 3 Flute

ANSI: E45 D1.20-W1.00

ISO: E45 D1.20-W1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110005
Delivery date: 3-5 days
$297.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Back Chamfering, Chamfering
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Cut Dia Min 1.2000 30.48MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Cutter Dia 1.2000 30.48MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.2700
Tool Material Steel
Cut Dia Max 1.8150 46.10MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SC
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000213
