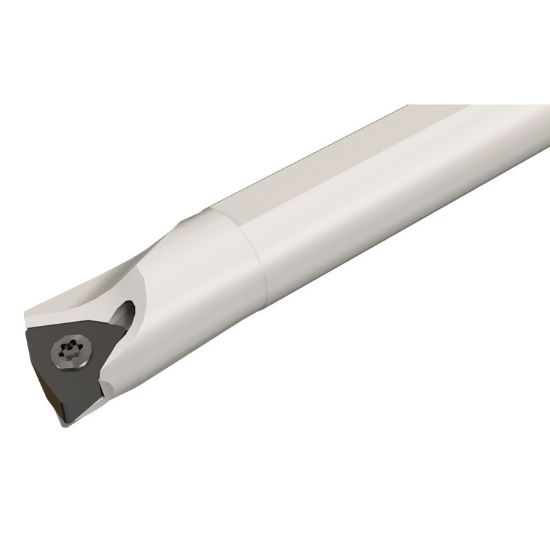

Picture of ISCAR E16R-SWLNL-04 Turning Boring Bar Trigon Insert 0.629 Boring Bar

ISCAR E16R-SWLNL-04 Turning Boring Bar Trigon Insert 0.629 Boring Bar

ANSI: E16R-SWLNL-04

ISO: E16R SWLNL-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6989905
Delivery date: 3-5 days
$695.04

Important Notes

Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Boring bars with steel and carbide shanks for small diameters, carrying WNGP 0403.. trigon inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Package Size 1
Application Int.Turning
Dimensional Specifications
Machine Side Connection Type Boring Bar
Insert Size Ic 04 "22"
Overall Len 7.8740 200.00MM
Lead Angle 95°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
