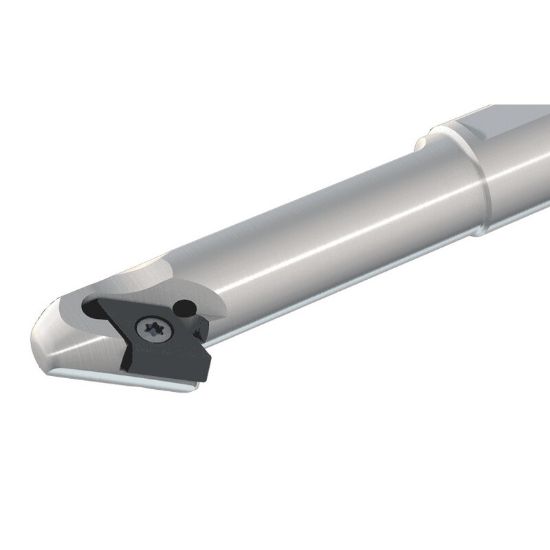

Picture of ISCAR E12Q-SDZNL-07 Turning Boring Bar 55.0° Insert 0.472 Boring Bar

ISCAR E12Q-SDZNL-07 Turning Boring Bar 55.0° Insert 0.472 Boring Bar

ANSI: E12Q-SDZNL-07

ISO: E12Q SDZNL-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6709254
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

Use right-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Back turning Boring bars with steel and carbide shanks carrying the DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Application Int.Turning
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.4724 12.00MM
Lead Angle 93° B
Overall Len 7.0870 180.01MM
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic 07 "22"
Tool Material Steel
Cutting & Machining Properties
Insert Style DN
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
