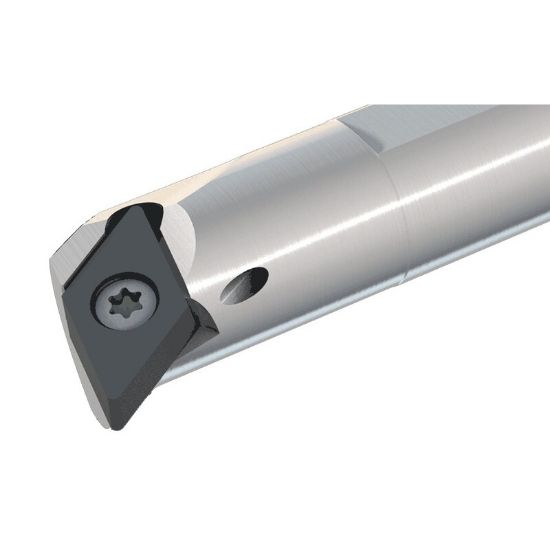

Picture of ISCAR E12Q-SDXNL-07 Turning Boring Bar 55.0° Insert 0.472 Boring Bar

ISCAR E12Q-SDXNL-07 Turning Boring Bar 55.0° Insert 0.472 Boring Bar

ANSI: E12Q-SDXNL-07

ISO: E12Q SDXNL-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6989914
Delivery date: 3-5 days
$499.20

Important Notes

Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Boring bars with steel and carbide shanks carrying the DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1
Insert/Tool Tool
Application Int.Turning
Dimensional Specifications
Clearance Angle 15.5°
Lead Angle 100°
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 07 "22"
Tool Material Steel
Overall Len 7.0870 180.01MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Left
