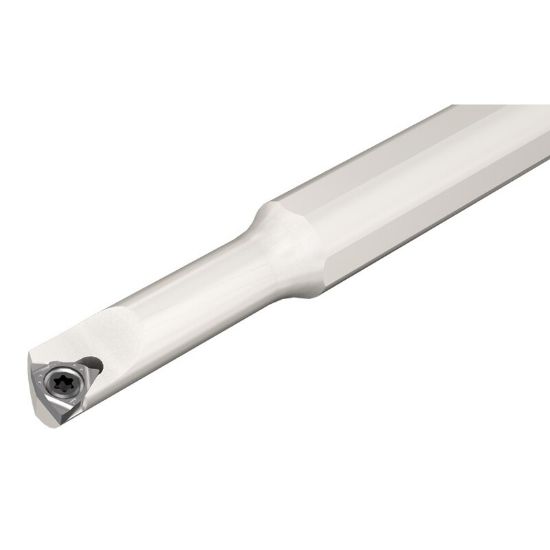

ISCAR E-SWUBR 5-5 Turning Boring Bar Trigon Insert 0.312 Boring Bar

Name: ISCAR E-SWUBR 5-5 Turning Boring Bar Trigon Insert 0.312 Boring Bar
SKU: ISC3601956
Price: 296.64 USD
Availability: InStock

ANSI: E-SWUBR 5-5

ISO: E-SWUBR 5-5

Manufacturer: ISCAR

SKU: ISC3601956

Delivery date: 3-5 days

$296.64

Qty:

Details

Screw clamp miniature boring bars carrying the small WBMT trigon inserts. S - Steel shank; E - Carbide shank with coolant hole.

Products specifications

Attribute name	Attribute value
General Product Information
Insert Type	Positive
Application	Int.Turning
Shipping State	Texas
Insert/Tool	Tool
Insert Application	General Purpose
Made In USA	No
Package Size	1
Dimensional Specifications
Overall Len	5.0000 127.00MM
Machine Side Connection Type	Boring Bar
Machine Side Connection Size	0.3125 7.94MM
Lead Angle	93°
Shank/Pilot Dia	0.3125 7.94MM - 5/16
Insert Size Ic	03 "52"
Cutting & Machining Properties
Hand R/L	Right
Insert Shape/Cutter Pocket Shape	Trigon
Inter/Extern	Internal
Insert Style	WB
