  • ISCAR DSM 0709-354-100A-5D 0.709" Indexable Head Drill s with Coolant Holes, Drill ing Depth 5xD

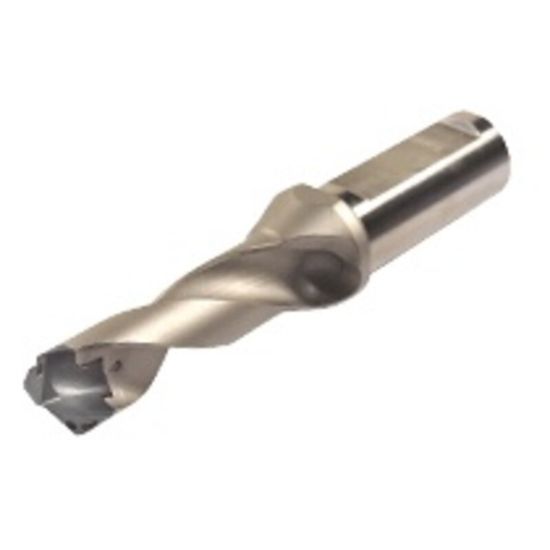

Picture of ISCAR DSM 0709-354-100A-5D 0.709" Indexable Head Drill s with Coolant Holes, Drill ing Depth 5xD

ISCAR DSM 0709-354-100A-5D 0.709" Indexable Head Drill s with Coolant Holes, Drill ing Depth 5xD

ISO: DSM 0709-354-100A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201080
Delivery date: 3-5 days
$356.16

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 0.7087 18.00MM
Overall Len 6.5200 165.61MM
Cutter Dia 0.7087 18.00MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 0.7440 18.90MM
Flute Length 3.5400 89.92MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
