  • ISCAR DR2.91>3.15-7.9-2-12/14CA 2.91" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

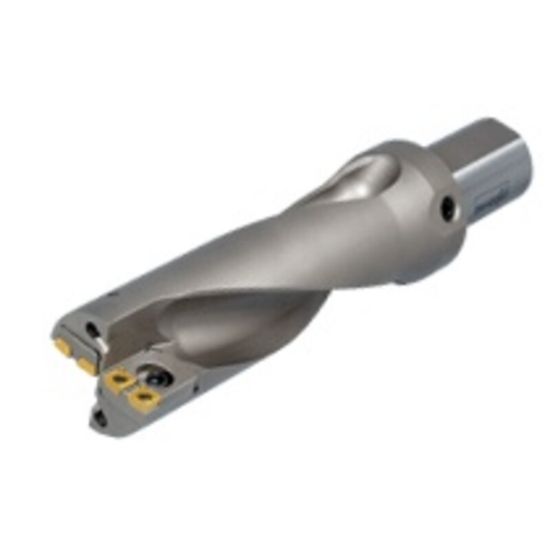

Picture of ISCAR DR2.91>3.15-7.9-2-12/14CA 2.91" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

ISCAR DR2.91>3.15-7.9-2-12/14CA 2.91" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

ISO: DR2.91>3.15-7.9-2-12/14CA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6158415
Delivery date: 3-5 days
$1,689.60
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 2.9134 74.00MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Overall Len 12.9500 328.93MM
Flutes/Inserts 2
Included Angle 140°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flute Length 7.8700 199.90MM
Cut Dia Max 3.1880 80.98MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Cut Dia Min 2.9134 74.00MM
Industry-Specific Applications
Job Shop Yes
