  • ISCAR DR2.24>2.37-6.1-2-10/11CA 2.24" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

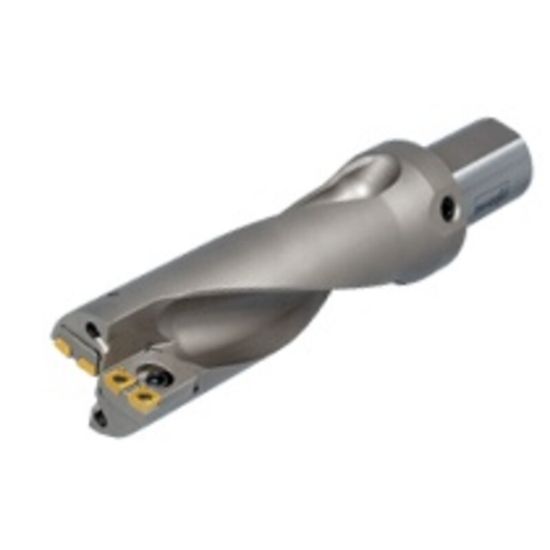

Picture of ISCAR DR2.24>2.37-6.1-2-10/11CA 2.24" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

ISCAR DR2.24>2.37-6.1-2-10/11CA 2.24" DR Large Diameter Drill s (2.244-3.125") with Cartridges and One Flat Shank

ISO: DR2.24>2.37-6.1-2-10/11CA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6158412
Delivery date: 3-5 days
$1,632.00
Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 2.2402 56.90MM
Machine Side Connection Type Boring Bar,Weldon
Machine Side Connection Size 2.0000 50.80MM
Flute Length 6.1000 154.94MM
Cut Dia Min 2.2402 56.90MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Max 2.4800 62.99MM
Overall Len 11.0500 280.67MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 2
Included Angle 140°
Industry-Specific Applications
Job Shop Yes
