  • ISCAR DR2187-4374-150-16-2D-N 2.187" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

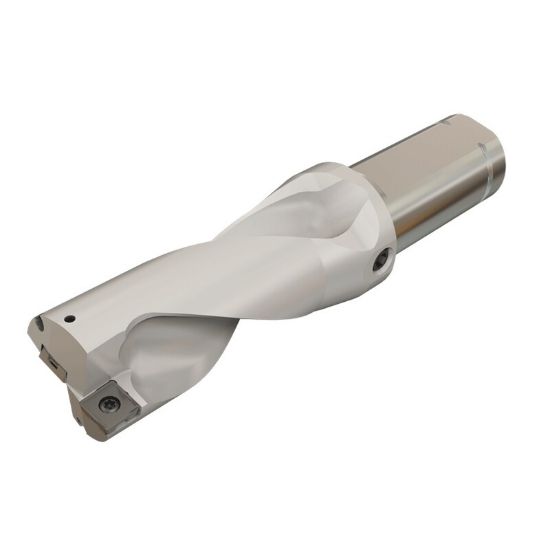

Picture of ISCAR DR2187-4374-150-16-2D-N 2.187" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISCAR DR2187-4374-150-16-2D-N 2.187" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISO: DR2187-4374-150-16-2D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201816
Delivery date: 3-5 days
$881.28

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cut Dia Max 2.2240 56.49MM
Cut Dia Min 2.1875 55.56MM - 2-3/16
Dia Deep 2.0XD
Tool Material Steel
Overall Len 8.8700 225.30MM
Flute Length 4.3700 111.00MM
Cutter Dia 2.1875 55.56MM - 2-3/16
Machine Side Connection Size 1.5000 38.10MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
