  • ISCAR DR0937-3750-100-07-4D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

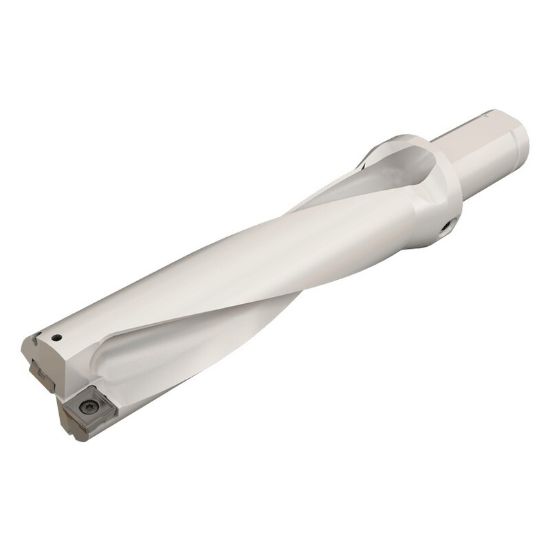

Picture of ISCAR DR0937-3750-100-07-4D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISCAR DR0937-3750-100-07-4D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISO: DR0937-3750-100-07-4D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201406
Delivery date: 3-5 days
$635.52

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Multi Insert Drilling, Drilling
Shipping State Texas
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Dia Deep 4.0XD
Flute Length 3.7500 95.25MM
Overall Len 7.6100 193.29MM
Cut Dia Max 1.0200 25.91MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 0.9370 23.80MM
Tool Material Steel
Cutter Dia 0.9370 23.80MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
