  • ISCAR DR0937-1875-100-07-2D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

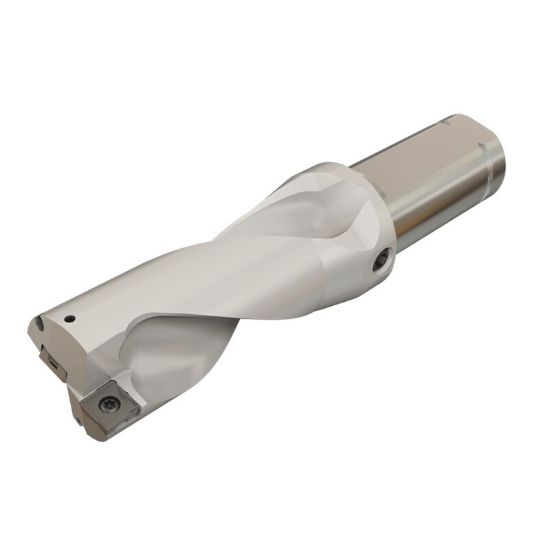

Picture of ISCAR DR0937-1875-100-07-2D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISCAR DR0937-1875-100-07-2D-N 0.937" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISO: DR0937-1875-100-07-2D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201396
Delivery date: 3-5 days
$533.76

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Multi Insert Drilling, Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 0.9370 23.80MM
Tool Material Steel
Cutter Dia 0.9370 23.80MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.8800 47.75MM
Overall Len 5.7400 145.80MM
Cut Dia Max 1.0200 25.91MM
Flutes/Inserts 2
Dia Deep 2.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
