  • ISCAR DR0844-1688-100-07-2D-N 0.844" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

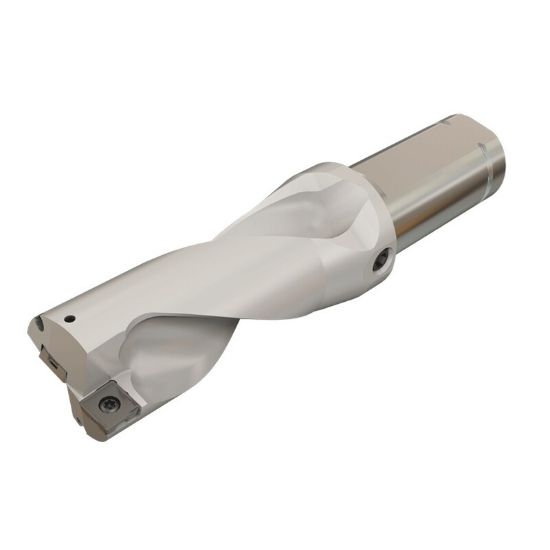

Picture of ISCAR DR0844-1688-100-07-2D-N 0.844" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISCAR DR0844-1688-100-07-2D-N 0.844" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISO: DR0844-1688-100-07-2D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201393
Delivery date: 3-5 days
$519.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 0.8438 21.43MM - 27/32
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Dia Deep 2.0XD
Cut Dia Max 0.9720 24.69MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 5.5500 140.97MM
Flutes/Inserts 2
Flute Length 1.6900 42.93MM
Cut Dia Min 0.8438 21.43MM - 27/32
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
