  • ISCAR DR0812-3250-100-06-4D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

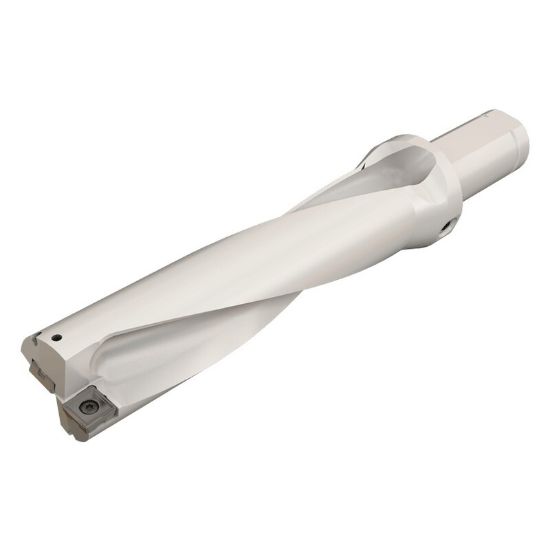

Picture of ISCAR DR0812-3250-100-06-4D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISCAR DR0812-3250-100-06-4D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISO: DR0812-3250-100-06-4D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201402
Delivery date: 3-5 days
$635.52

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Multi Insert Drilling
Made In USA No
Shipping State Texas
Package Size 1
Dimensional Specifications
Cutter Dia 0.8125 20.64MM - 13/16
Overall Len 7.1200 180.85MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Max 0.8500 21.59MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 0.8125 20.64MM - 13/16
Flute Length 3.2500 82.55MM
Flutes/Inserts 2
Dia Deep 4.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
