  • ISCAR DR0812-2438-100-06-3D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 3xD

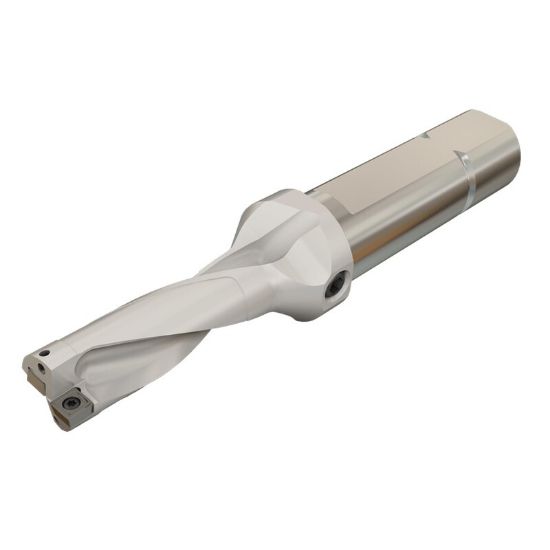

Picture of ISCAR DR0812-2438-100-06-3D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 3xD

ISCAR DR0812-2438-100-06-3D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 3xD

ISO: DR0812-2438-100-06-3D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201397
Delivery date: 3-5 days
$551.04

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Multi Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Cut Dia Min 0.8125 20.64MM - 13/16
Cut Dia Max 0.8500 21.59MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Dia Deep 3.0XD
Cutter Dia 0.8125 20.64MM - 13/16
Machine Side Connection Type Boring Bar,Weldon
Overall Len 6.3000 160.02MM
Flute Length 2.4400 61.98MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
