  • ISCAR DR0812-1625-100-06-2D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

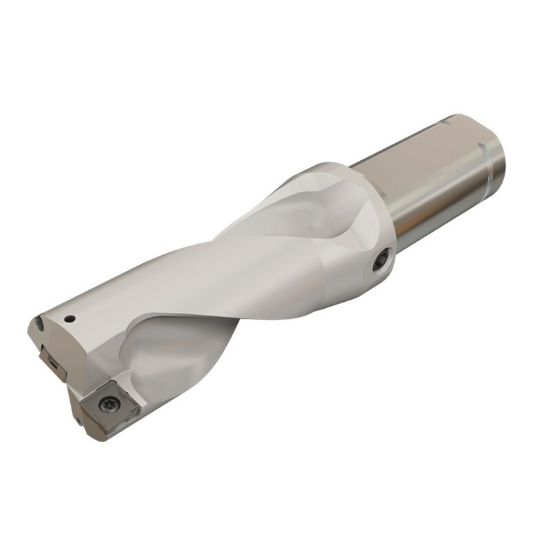

Picture of ISCAR DR0812-1625-100-06-2D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISCAR DR0812-1625-100-06-2D-N 0.812" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 2xD

ISO: DR0812-1625-100-06-2D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201392
Delivery date: 3-5 days
$519.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Multi Insert Drilling, Drilling
Shipping State Texas
Made In USA No
Dimensional Specifications
Overall Len 5.4900 139.45MM
Dia Deep 2.0XD
Cut Dia Max 0.8500 21.59MM
Flutes/Inserts 2
Cutter Dia 0.8125 20.64MM - 13/16
Cut Dia Min 0.8125 20.64MM - 13/16
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.6300 41.40MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
