  • ISCAR DR0734-3661-100-06-5D-N 0.734" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 5xD

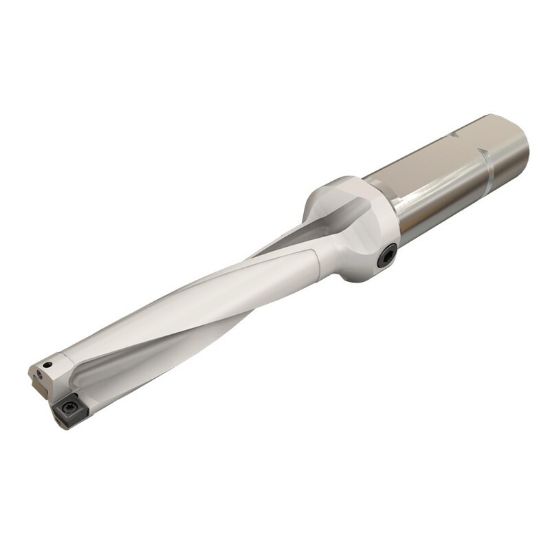

Picture of ISCAR DR0734-3661-100-06-5D-N 0.734" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 5xD

ISCAR DR0734-3661-100-06-5D-N 0.734" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 5xD

ISO: DR0734-3661-100-06-5D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260142
Delivery date: 3-5 days
$628.80

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Multi Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Cut Dia Min 0.7344 18.65MM - 47/64
Cut Dia Max 0.7910 20.09MM
Dia Deep 5.0XD
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flute Length 3.6600 92.96MM
Cutter Dia 0.7344 18.65MM - 47/64
Machine Side Connection Type Boring Bar,Weldon
Overall Len 7.5200 191.01MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
