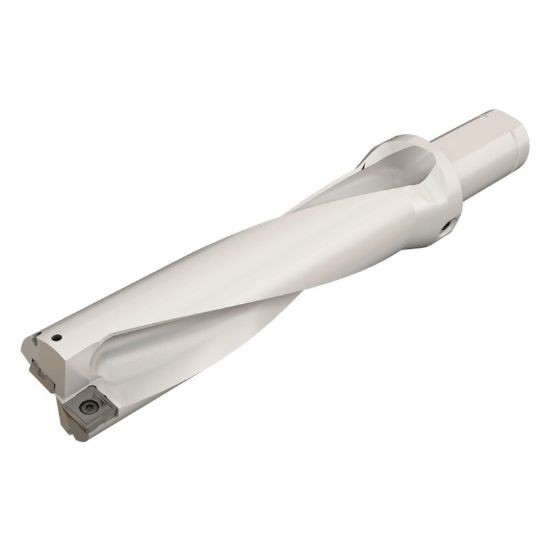

Picture of ISCAR DR0531-2124-063-04-4D-N 0.531" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISCAR DR0531-2124-063-04-4D-N 0.531" Indexable Square Insert Drill s with Coolant Holes, Drill ing Depth 4xD

ISO: DR0531-2124-063-04-4D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3202565
Delivery date: 3-5 days
$551.04

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Drilling, Multi Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Overall Len 5.8700 149.10MM
Flute Length 2.1200 53.85MM
Cutter Dia 0.5315 13.50MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Dia Max 0.5500 13.97MM
Machine Side Connection Size 0.6250 15.88MM
Dia Deep 4.0XD
Cut Dia Min 0.5315 13.50MM
Machine Side Connection Type Boring Bar,Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
