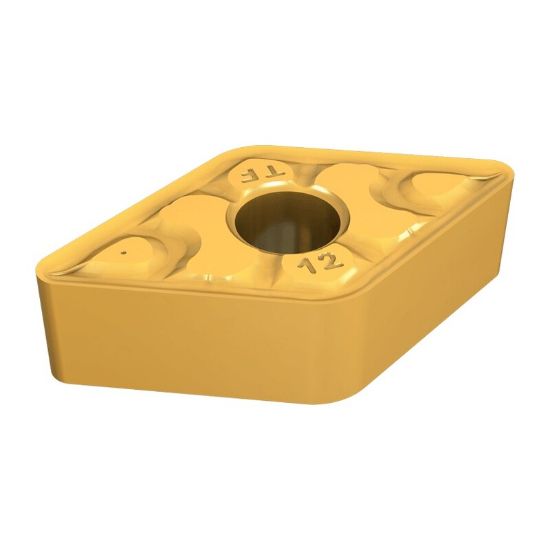

ISCAR DNGG431-TF IC907 Turning Insert 55.0° Carbide TiAIN + TiN 0.016 Corner Radius

ANSI: DNGG431-TF IC907

ISO: DNGG150404-TF IC907

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5505462
Delivery date: 3-5 days
$16.42

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

Double-Sided 55° Rhombic Inserts for Machining a Wide Range of Materials at Medium Cutting Conditions

Grade and Coating Description

A tough sub-micron substrate, PVD coated. Suitable for low-to-medium cutting speeds. Developed for machining of heat resistant alloys, austenitic stainless steel and hard steel.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Application Turning Insert
Made In USA No
Insert Application Finishing
Insert/Tool Insert
Coating TiAIN + TiN
Package Size 10
Shipping State Texas
Grade IC907
Dimensional Specifications
Insert Size Ic 15 "43"
Corner Radius 0.0160 0.41MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Cutting & Machining Properties
Insert Style DN
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape 55.0°
