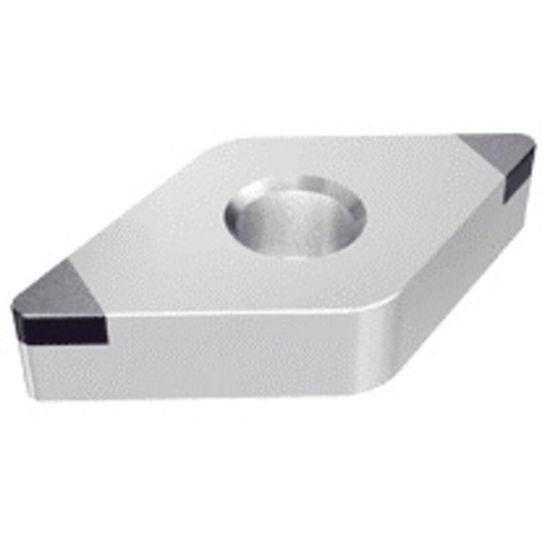

ISCAR DNGA433-R2 IB20H Turning Insert 55.0° CBN 0.047 Corner Radius

ANSI: DNGA433-R2 IB20H

ISO: DNGA150412-R2 IB20H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6817973
Delivery date: 3-5 days
$59.01

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

55° Rhombic Inserts with 2 CBN Tips for Machining Hardened Steel, Sintered Metals and High Temperature Alloys

Grade and Coating Description

A combination of coarse and fine grain PCBN, used for general and interrupted cutting of hardened steel.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Shipping State Texas
Package Size 10
Insert Type Negative
Insert Application Roughing
Application Turning Insert
Made In USA No
Grade IB20H
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Cut Rating <65HRC Steel
Insert Size Ic 15 "43"
Cutting & Machining Properties
Insert Style DN
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 55.0°
