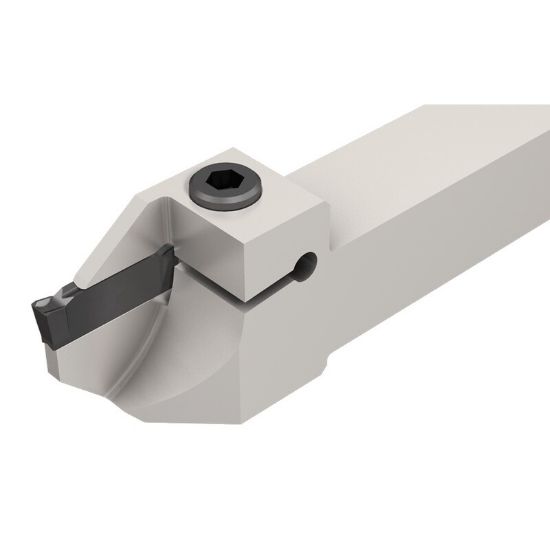

ISCAR DGTR 25.4B-3D40 Cut Off,Grooving Stick Tool 1.000 Tool

ANSI: DGTR 25.4B-3D40

ISO: DGTR 25.4B-3D40

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301433
Delivery date: 3-5 days
$182.40

Important Notes

Important: 1.4 mm (.055") width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039") inserts can also be mounted into pocket sizes 2 and 3.

Details

Integral-shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Made In USA No
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Depth Of Cut Max 0.7870
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.5000 139.70MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style DG
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
