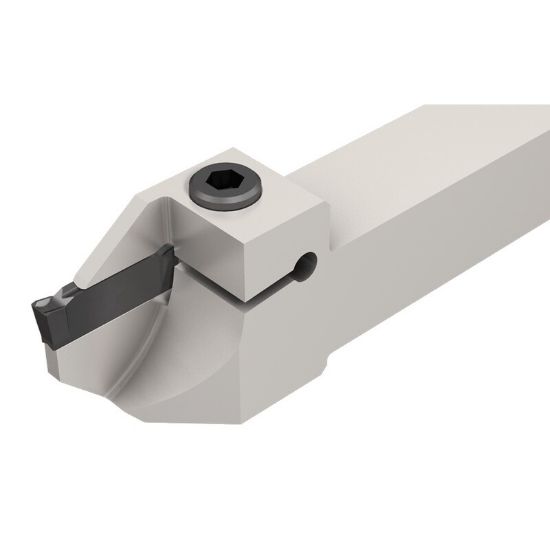

Picture of ISCAR DGTR 25.4B-2D35 Cut Off,Grooving Stick Tool 1.000 Tool

ISCAR DGTR 25.4B-2D35 Cut Off,Grooving Stick Tool 1.000 Tool

ANSI: DGTR 25.4B-2D35

ISO: DGTR 25.4B-2D35

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301427
Delivery date: 3-5 days
$182.40

Important Notes

Important: 1.4 mm (.055") width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039") inserts can also be mounted into pocket sizes 2 and 3.

Details

Integral-shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.5000 139.70MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.0750 1.91MM
Tool Width 1.0000
Depth Of Cut Max 0.6890
Cutting & Machining Properties
Insert Style DG
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
