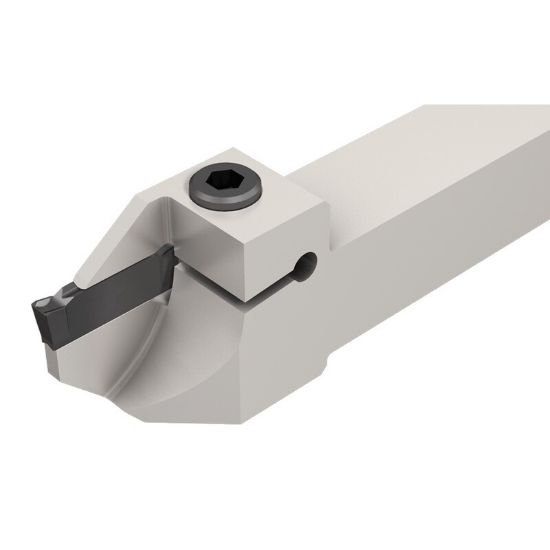

Picture of ISCAR DGTL 9.5B-2D30 Cut Off,Grooving Stick Tool 0.375 Tool

ISCAR DGTL 9.5B-2D30 Cut Off,Grooving Stick Tool 0.375 Tool

ANSI: DGTL 9.5B-2D30

ISO: DGTL 9.5B-2D30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301422
Delivery date: 3-5 days
$143.04

Important Notes

Important: 1.4 mm (.055") width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039") inserts can also be mounted into pocket sizes 2 and 3.

Details

Integral-shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutting Width 0.0750 1.91MM
Insert Size Ic 2
Depth Of Cut Max 0.5910
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.9100 150.11MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Tool Width 0.3750
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Inter/Extern External
Insert Style DG
Hand R/L Left
