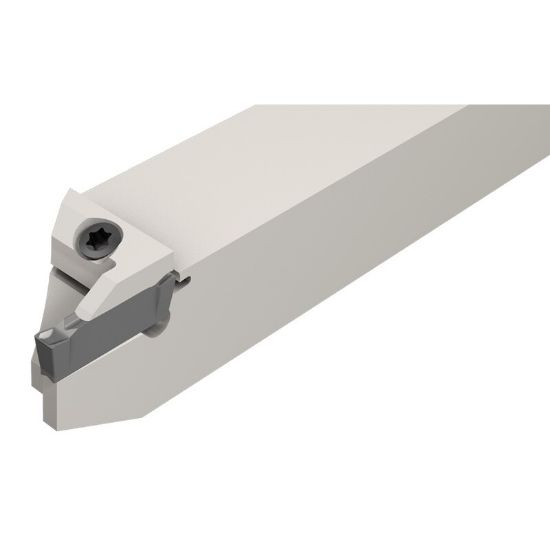

ISCAR DGTL 9.5B-2D20SH Cut Off,Grooving Stick Tool 0.375 Tool

Name: ISCAR DGTL 9.5B-2D20SH Cut Off,Grooving Stick Tool 0.375 Tool
SKU: ISC2301528
Price: 143.04 USD
Availability: InStock

ANSI: DGTL 9.5B-2D20SH

ISO: DGTL 9.5B-2D20SH

Manufacturer: ISCAR

SKU: ISC2301528

Delivery date: 3-5 days

$143.04

Qty:

Important Notes

DGN/R/L 1 mm inserts can also be mounted into pocket sizes 2 and 3.

Parting and grooving short head tools for CNC and Swiss automatics.

Products specifications

Attribute name	Attribute value
General Product Information
Insert/Tool	Tool
Application	Ext.Grooving, Parting
Insert Application	General Purpose
Made In USA	No
Insert Type	Positive
Package Size	1
Shipping State	Texas
Dimensional Specifications
Shank/Pilot Dia	0.3750 9.53MM - 3/8
Cutting Width	0.0750 1.91MM
Overall Len	4.7000 119.38MM
Insert Size Ic	2
Tool Material	Steel
Machine Side Connection Type	Stick Tool
Machine Side Connection Size	0.3750 9.53MM
Tool Width	0.3750
Cutting & Machining Properties
Insert Style	DG
Insert Shape/Cutter Pocket Shape	Dog Bone
Inter/Extern	External
Hand R/L	Left
