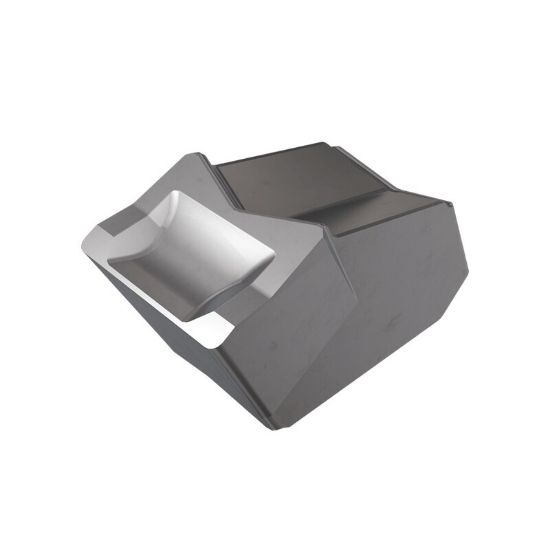

ISCAR DGN 2202LF IC5400 Cut Off,Grooving Insert 0.006 Corner Radius 0.087 Wide

ANSI: DGN 2202LF IC5400

ISO: DGN 2202LF IC5400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6061025
Delivery date: 3-5 days
$11.70

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Parting & Grooving, Single-Ended Insert, for Parting of Bars, Hard Materials and Tough Applications

File Downloads

DXFSTPSTPL

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 10
Insert Application General Purpose
Made In USA No
Shipping State Texas
Grade IC30N
Insert/Tool Insert
Application Grooving & Parting Insert
Dimensional Specifications
Cutting Width 0.0870 2.21MM
Insert Size Ic 2
Corner Radius 0.0060 0.15MM
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
