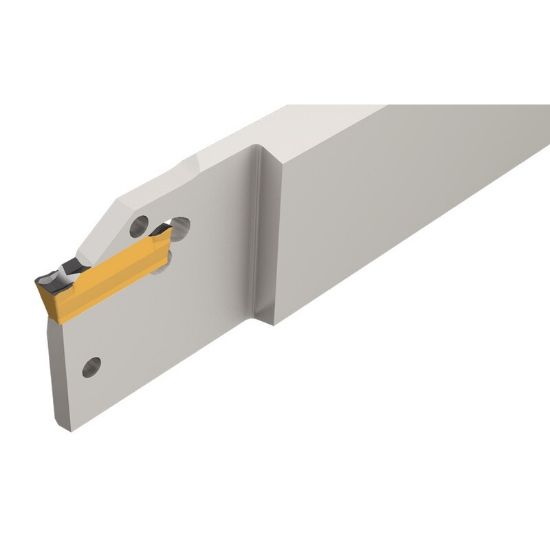

Picture of ISCAR DGFHR 32T41-4 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFHR 32T41-4 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFHR 32T41-4

ISO: DGFHR 32T41-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301340
Delivery date: 3-5 days
$294.72

Important Notes

Insert limit is Tmax=.709". If deeper penetration is required, the insert should be modified into single-ended by the user. DG..1.0 insert can be mounted into pocket sizes 2 and 3.

Details

Double- and single-ended, parting and grooving reinforced blades for DO-GRIP inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Dimensional Specifications
Cutting Width 0.1570 3.99MM
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 4
Tool Material Steel
Overall Len 4.3310 110.01MM
Cutting & Machining Properties
Extractor EDG 33A
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Insert Style DG
