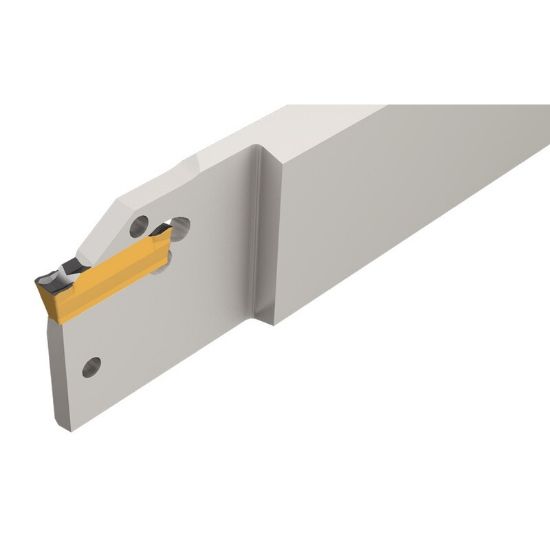

Picture of ISCAR DGFHR 32T33-3 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFHR 32T33-3 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFHR 32T33-3

ISO: DGFHR 32T33-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301338
Delivery date: 3-5 days
$264.96

Important Notes

Insert limit is Tmax=.709". If deeper penetration is required, the insert should be modified into single-ended by the user. DG..1.0 insert can be mounted into pocket sizes 2 and 3.

Details

Double- and single-ended, parting and grooving reinforced blades for DO-GRIP inserts.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Application Ext.Grooving, Parting
Dimensional Specifications
Cutting Width 0.1180 3.00MM
Tool Material Steel
Machine Side Connection Type Blade
Insert Size Ic 3
Machine Side Connection Size 1.2598 32.00MM
Overall Len 4.3310 110.01MM
Cutting & Machining Properties
Insert Style DG
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
Extractor EDG 33A
