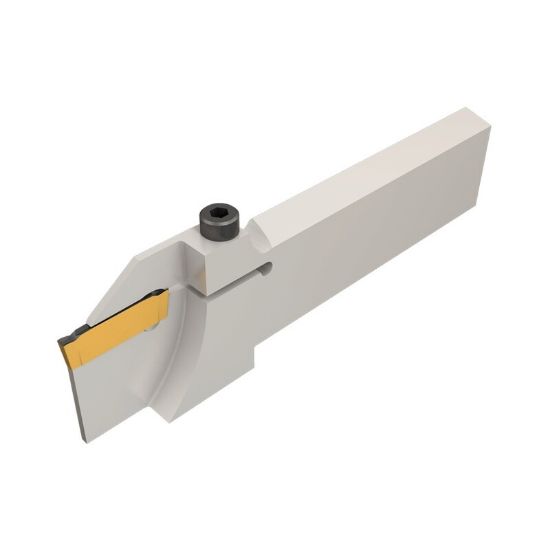

Picture of ISCAR DGFHR 32B-3D50 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFHR 32B-3D50 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFHR 32B-3D50

ISO: DGFHR 32B-3D50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301570
Delivery date: 3-5 days
$250.56

Important Notes

Insert (double sided) limit is CDX=.709", If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.

Details

Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Blade
Insert Size Ic 3
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.7090
Cutting Width 0.1180 3.00MM
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
