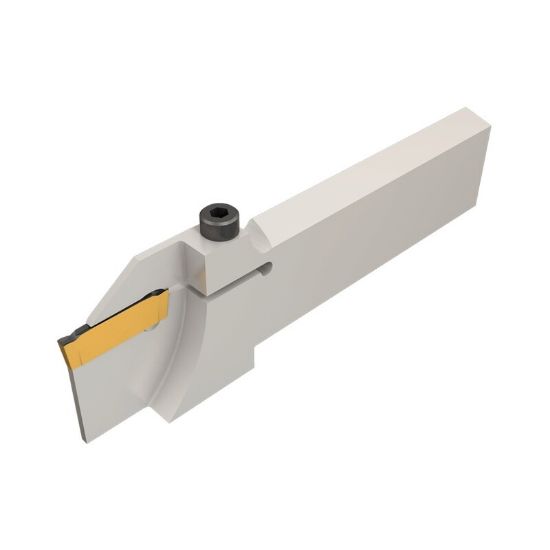

Picture of ISCAR DGFHR 26B-3D50 Cut Off,Grooving Blade 1.024 Tool

ISCAR DGFHR 26B-3D50 Cut Off,Grooving Blade 1.024 Tool

ANSI: DGFHR 26B-3D50

ISO: DGFHR 26B-3D50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2398827
Delivery date: 3-5 days
$236.16

Details

Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

Insert (double sided) limit is CDX=.709", If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Parting
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.0240 26.01MM
Cutting Width 0.1180 3.00MM
Depth Of Cut Max 0.7090
Overall Len 4.3310 110.01MM
Insert Size Ic 3
Cutting & Machining Properties
Insert Style DG
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
