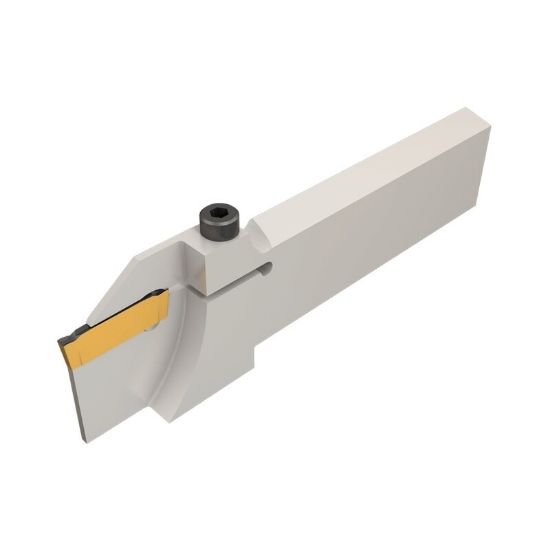

Picture of ISCAR DGFHL 32B-2D50 Cut Off,Grooving Blade 1.249 Tool

ISCAR DGFHL 32B-2D50 Cut Off,Grooving Blade 1.249 Tool

ANSI: DGFHL 32B-2D50

ISO: DGFHL 32B-2D50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301569
Delivery date: 3-5 days
$208.32

Important Notes

Insert (double sided) limit is CDX=.709", If deeper penetration is required the insert should be changed to a single-ended insert DGNM type. DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified.

Details

Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Texas
Dimensional Specifications
Cutting Width 0.0750 1.91MM
Depth Of Cut Max 0.7090
Machine Side Connection Size 1.2490 31.72MM
Machine Side Connection Type Blade
Insert Size Ic 2
Tool Material Steel
Overall Len 4.7240 119.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
Hand R/L Left
