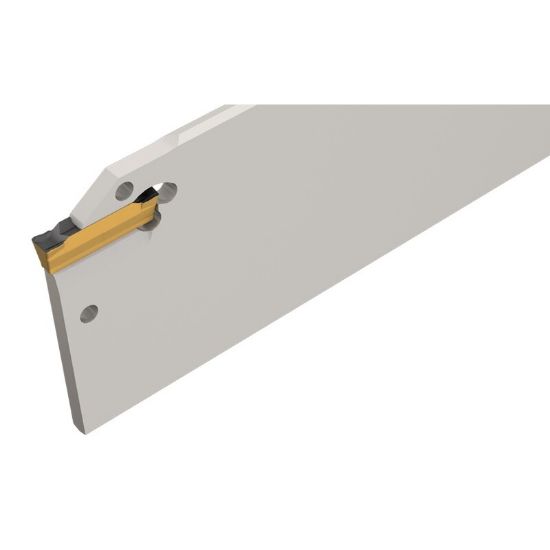

Picture of ISCAR DGFH 45-3 Cut Off,Grooving Blade 1.772 Tool

ISCAR DGFH 45-3 Cut Off,Grooving Blade 1.772 Tool

ANSI: DGFH 45-3

ISO: DGFH 45-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301322
Delivery date: 3-5 days
$228.48

Important Notes

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified

Details

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ext.Grooving, Parting
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.7720 45.01MM
Cutting Width 0.1180 3.00MM
Insert Size Ic 3
Overall Len 8.8580 224.99MM
Cutting & Machining Properties
Extractor EDG 33A
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
