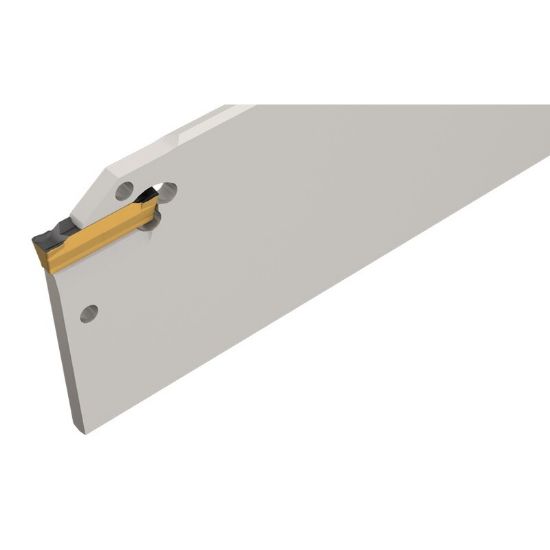

Picture of ISCAR DGFH 32-4 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFH 32-4 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFH 32-4

ISO: DGFH 32-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301246
Delivery date: 3-5 days
$139.20

Important Notes

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified

Details

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting
Dimensional Specifications
Cutting Width 0.1570 3.99MM
Insert Size Ic 4
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Overall Len 5.9060 150.01MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Extractor EDG 33A
Insert Style DG
