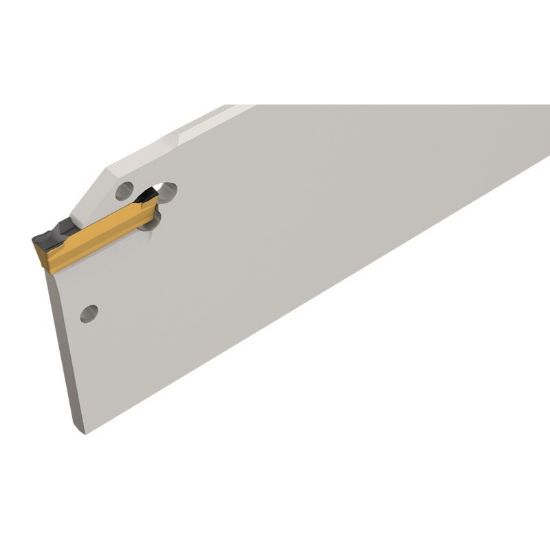

Picture of ISCAR DGFH 32-3 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFH 32-3 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFH 32-3

ISO: DGFH 32-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301245
Delivery date: 3-5 days
$139.20

Important Notes

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified

Details

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Texas
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Insert Size Ic 3
Overall Len 5.9060 150.01MM
Cutting Width 0.1180 3.00MM
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Extractor EDG 33A
Insert Style DG
