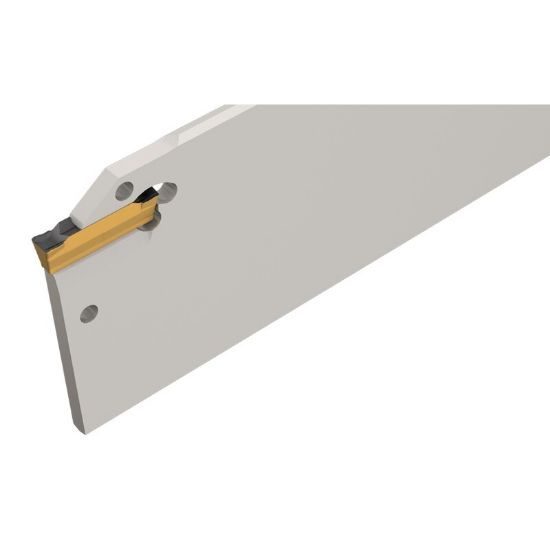

Picture of ISCAR DGFH 32-1.4 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGFH 32-1.4 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGFH 32-1.4

ISO: DGFH 32-1.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301449
Delivery date: 3-5 days
$144.96

Important Notes

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified

Details

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Application Ext.Grooving, Parting
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Cutting Width 0.0550 1.40MM
Overall Len 5.9060 150.01MM
Insert Size Ic 1.4
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Machine Side Connection Type Blade
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
