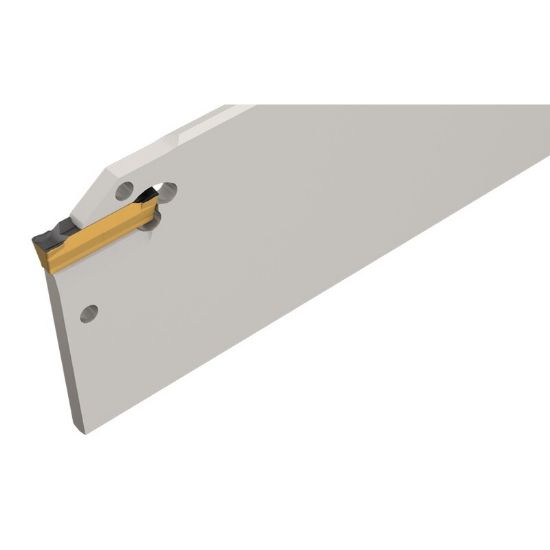

Picture of ISCAR DGFH 26-1.4 Cut Off,Grooving Blade 1.024 Tool

ISCAR DGFH 26-1.4 Cut Off,Grooving Blade 1.024 Tool

ANSI: DGFH 26-1.4

ISO: DGFH 26-1.4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2395946
Delivery date: 3-5 days
$131.52

Details

Double-ended parting and grooving blades carrying DO-GRIP and HELI-GRIP double-ended inserts. Blades with coolant channels are designated with "C".

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified - click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Texas
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Cutting Width 0.0550 1.40MM
Insert Size Ic 1.4
Machine Side Connection Type Blade
Machine Side Connection Size 1.0240 26.01MM
Overall Len 4.3310 110.01MM
Cutting & Machining Properties
Insert Style DG
Extractor EDG 23B
Insert Shape/Cutter Pocket Shape Dog Bone
