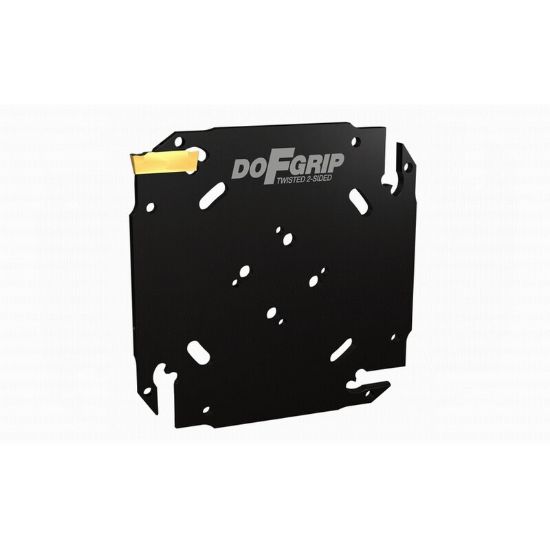

ISCAR DGAQ D82-4-2Z-JHP Cut Off Adapter Blade

ANSI: DGAQ D82-4-2Z-JHP

ISO: DGAQ D82-4-2Z-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3367517
Delivery date: 3-5 days
$192.00

Details

Parting and grooving square adapters for DO-GRIP inserts with internal coolant holes

When using .079 and .118" double-sided inserts, the depth of cut is limited up to .75". For larger depth, use a DGNM type single-ended insert.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Parting
Package Size 1
Dimensional Specifications
Machine Side Connection Type Blade
Cutting Width 0.1570 3.99MM
Insert Size Ic 4
Tool Material Steel
Overall Len 2.4020 61.01MM
Cutting & Machining Properties
Extractor EDG 33A
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
