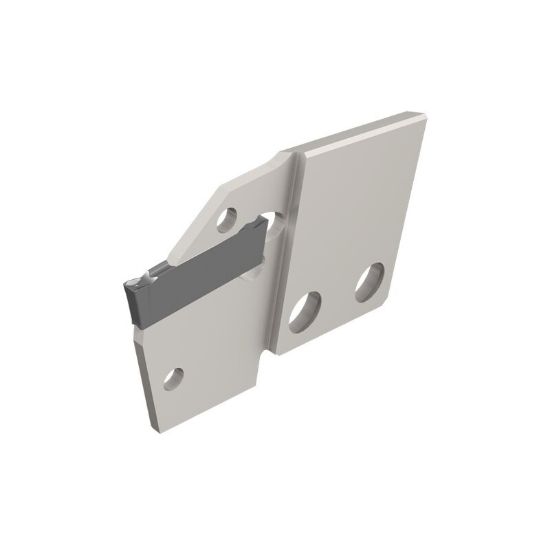

Picture of ISCAR DGAML 32-4 Cut Off,Grooving Blade 1.260 Tool

ISCAR DGAML 32-4 Cut Off,Grooving Blade 1.260 Tool

ANSI: DGAML 32-4

ISO: DGAML 32-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301695
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

DG..1.0 insert can be mounted into pocket sizes 2 and 3..

Details

Parting and grooving replacement adapter for DO-GRIP double-ended inserts, for Other manufacturers' holders.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Grooving, Parting
Shipping State Texas
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Cutting Width 0.1570 3.99MM
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.8700 47.50MM
Cutting & Machining Properties
Insert Style DG
Hand R/L Left
Extractor EDG 33A
Insert Shape/Cutter Pocket Shape Dog Bone
