  • ISCAR DFN 1457-728-125A-5D-IQ 1.457" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

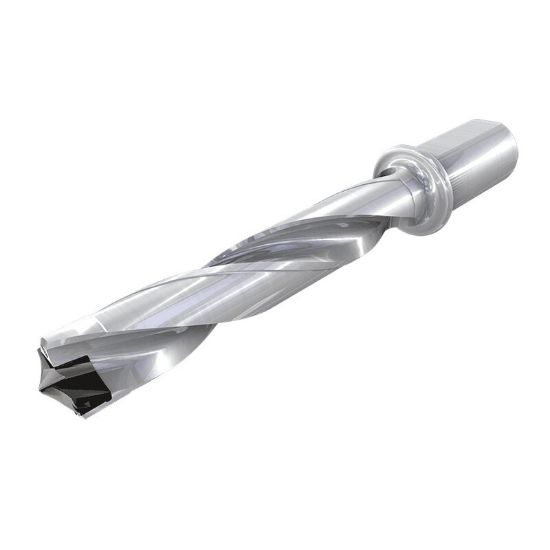

Picture of ISCAR DFN 1457-728-125A-5D-IQ 1.457" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISCAR DFN 1457-728-125A-5D-IQ 1.457" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISO: DFN 1457-728-125A-5D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260207
Delivery date: 3-5 days
$744.96

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Single Insert Drilling, Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.4567 37.00MM
Cut Dia Max 1.4920 37.90MM
Cut Dia Min 1.4567 37.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Flute Length 7.2800 184.91MM
Overall Len 11.3200 287.53MM
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
