  • ISCAR DFN 1378-413-125A-3D-IQ 1.378" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

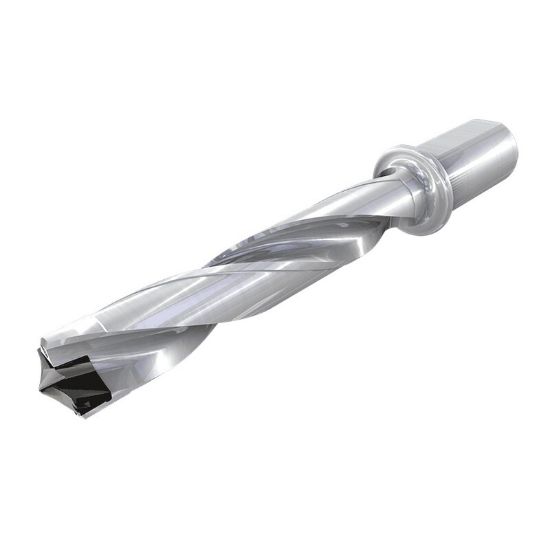

Picture of ISCAR DFN 1378-413-125A-3D-IQ 1.378" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

ISCAR DFN 1378-413-125A-3D-IQ 1.378" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 3xD

ISO: DFN 1378-413-125A-3D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260213
Delivery date: 3-5 days
$602.88

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Dimensional Specifications
Dia Deep 3.0XD
Cutter Dia 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.3780 35.00MM
Cut Dia Max 1.4130 35.89MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flute Length 4.1300 104.90MM
Machine Side Connection Type Boring Bar,Weldon
Overall Len 8.7300 221.74MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
