  • ISCAR DFN 1339-669-125A-5D-IQ 1.339" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

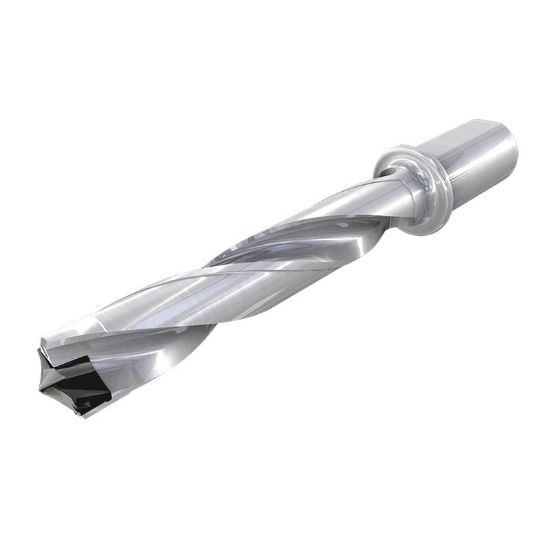

Picture of ISCAR DFN 1339-669-125A-5D-IQ 1.339" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISCAR DFN 1339-669-125A-5D-IQ 1.339" Indexable Head Drill s with Coolant Holes and One Flat Shank, Drill ing Depth 5xD

ISO: DFN 1339-669-125A-5D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3260204
Delivery date: 3-5 days
$711.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Single Insert Drilling, Drilling
Package Size 1
Shipping State Texas
Dimensional Specifications
Cutter Dia 1.3386 34.00MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 10.5900 268.99MM
Dia Deep 5.0XD
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 1.3386 34.00MM
Cut Dia Max 1.3740 34.90MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flute Length 6.6900 169.93MM
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
