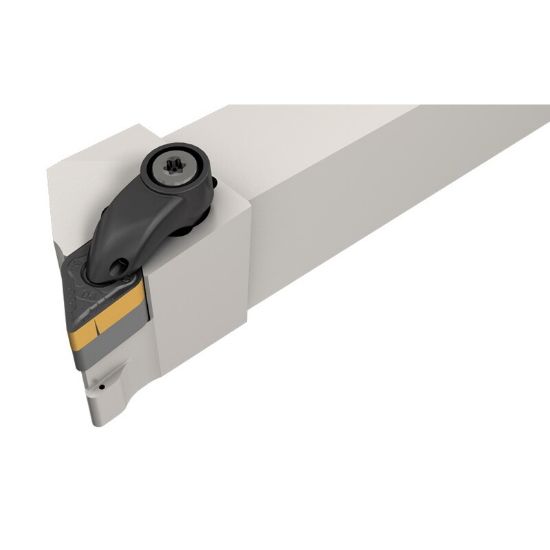

Picture of ISCAR DDJNR 16-4-JHP-MC Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR DDJNR 16-4-JHP-MC Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: DDJNR 16-4-JHP-MC

ISO: DDJNR 16-4-JHP-MC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3346699
Delivery date: 3-5 days
$288.00

Important Notes

Use RDT 433 seat for DNMX inserts

Details

Rigid Clamp tools with channels for high pressure coolant carrying DNMG/X 55° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Lead Angle 93°
Tool Width 1.0000
Insert Size Ic 12 "43"
Clearance Angle 27.0°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
Hand R/L Right
