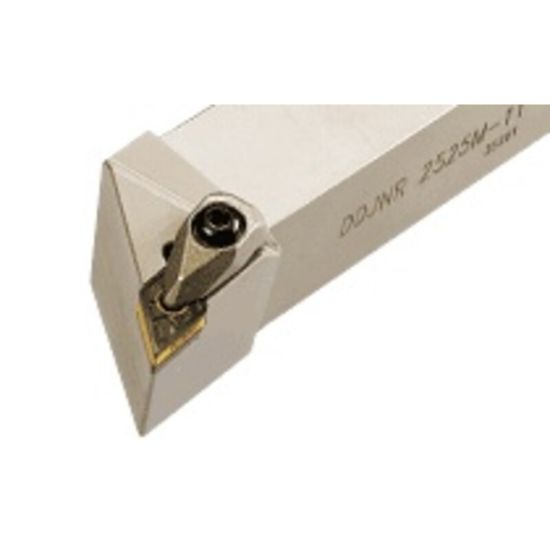

Picture of ISCAR DDJNR 16-3D Turning Stick Tool 55.0° Insert 1.000 Square

ISCAR DDJNR 16-3D Turning Stick Tool 55.0° Insert 1.000 Square

ANSI: DDJNR 16-3D

ISO: DDJNR 16-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3602565
Delivery date: 3-5 days
$128.64

Important Notes

For DNMG 44... inserts use RDT 433 seat (ordered separately)

Details

R-Clamp tools with 93° lead angle carrying the 55° negative rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Package Size 1
Shipping State Texas
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Lead Angle 93°
Tool Width 1.0000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Hand R/L Right
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
