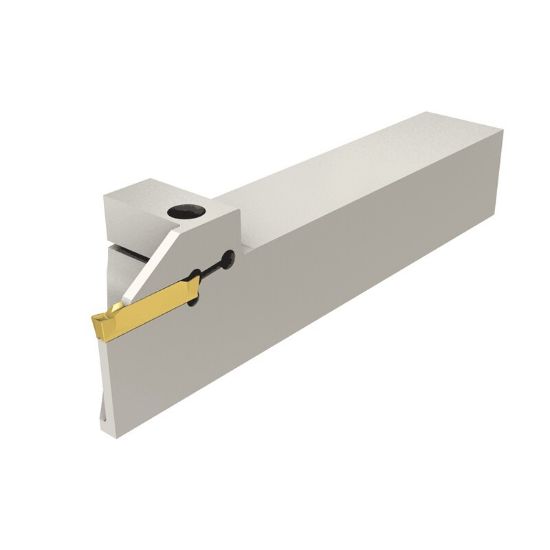

Picture of ISCAR DCTR 19B-2D35 Cut Off,Grooving Stick Tool 0.750 Tool

ISCAR DCTR 19B-2D35 Cut Off,Grooving Stick Tool 0.750 Tool

ANSI: DCTR 19B-2D35

ISO: DCTR 19B-2D35

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2302757
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Integral shank, reinforced parting and grooving tools for double-ended inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Swiss, Ext.Grooving, Parting
Made In USA No
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 3
Depth Of Cut Max 0.6890
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 5.5120 140.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DC
Hand R/L Right
Inter/Extern External
