  • ISCAR DCT 0689-140-100B-3/4UNF 0.689" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

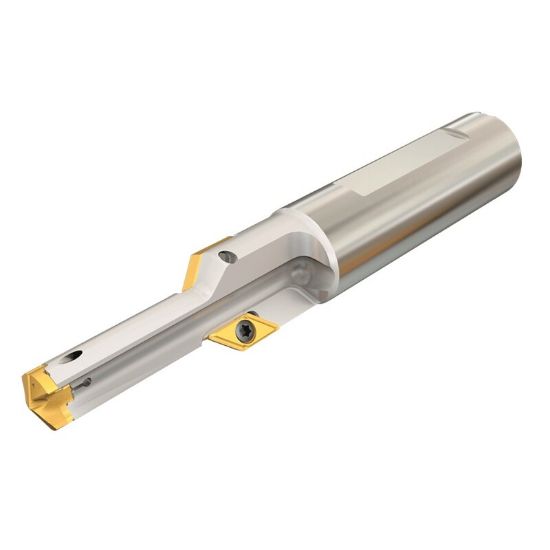

Picture of ISCAR DCT 0689-140-100B-3/4UNF 0.689" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISCAR DCT 0689-140-100B-3/4UNF 0.689" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISO: DCT 0689-140-100B-3/4UNF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3200994
Delivery date: 3-5 days
$327.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Single Insert Drilling, Drilling
Made In USA No
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.6890 17.50MM
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.8600 47.24MM
Cutter Dia 0.6890 17.50MM
Overall Len 4.5200 114.81MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Cut Dia Max 0.7070 17.96MM
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
