  • ISCAR DCT 0657-140-075B-3/4UNC 0.665" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

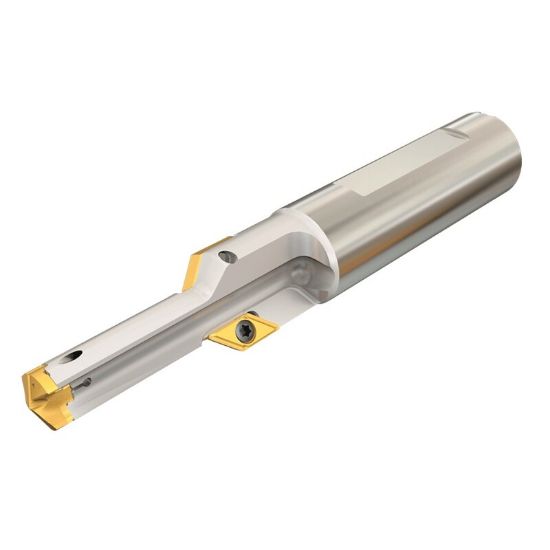

Picture of ISCAR DCT 0657-140-075B-3/4UNC 0.665" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISCAR DCT 0657-140-075B-3/4UNC 0.665" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISO: DCT 0657-140-075B-3/4UNC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3201001
Delivery date: 3-5 days
$327.36

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Application Drilling, Single Insert Drilling
Made In USA No
Dimensional Specifications
Machine Side Connection Type Boring Bar,Weldon
Flute Length 1.8000 45.72MM
Cut Dia Min 0.6496 16.50MM
Flutes/Inserts 2
Cut Dia Max 0.6650 16.89MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.2900 108.97MM
Cutter Dia 0.6496 16.50MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Cutting Edge Mat Steel
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
