  • ISCAR DCT 0311-100-063B-3/8UNC 0.352" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

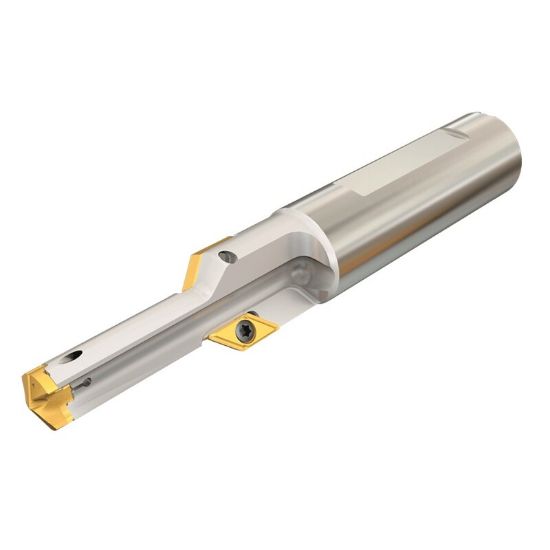

Picture of ISCAR DCT 0311-100-063B-3/8UNC 0.352" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISCAR DCT 0311-100-063B-3/8UNC 0.352" Indexable Head Drill s with Chamfer ing Inserts Mainly for Pre-Thread Holes

ISO: DCT 0311-100-063B-3/8UNC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3200996
Delivery date: 3-5 days
$253.44

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Single Insert Drilling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.3031 7.70MM
Cut Dia Max 0.3520 8.94MM
Machine Side Connection Size 0.6250 15.88MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 3.7500 95.25MM
Flute Length 1.4400 36.58MM
Machine Side Connection Type Boring Bar,Weldon
Cutter Dia 0.3031 7.70MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
